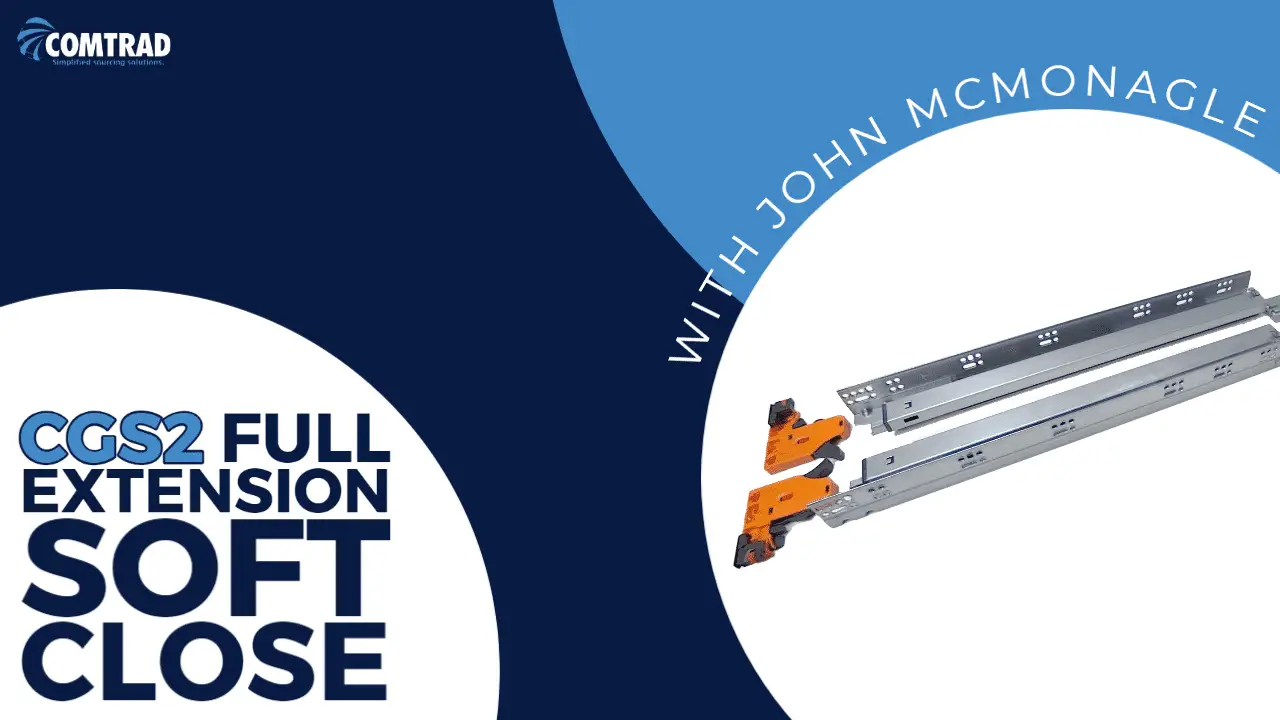

Join our Distribution Product Specialist John McMonagle in taking a deeper look into our fantastic CGS2 Full Extension Soft-Close Undermount Slide!
SPECIFICATIONS:
Length: 229 / 305 / 381 / 457 / 533mm 9″ / 12″ / 15″ / 18″ / 21″
Travel: Full Extension
Max Drawer Side Thickness: 16mm
Max. Load Capacity: 45 kg(100 lb)/pair
Mount: Undermount
Material: Galvanized Steel
Height Adjustment: +3.5mm
Side Adjustment: ±1.5mm
Depth Adjustment: ±2mm
Package: 6 pairs/carton
FEATURES:
Undermounted concealed runners with full extension travel length
Ultra smooth gliding motion with high rigidity and stability
Enhanced silent soft-closing feature with light opening force
Durable damping system with fast response capability
Tool-less drawer height adjustment from the drawer front
Tool-less drawer side adjustment from locking device
Tool-less built in depth adjustment roller on the drawer member
Simple assembly and removal of drawer with the front release latch
Dynamic loading capacity of 45kg (100lb) with 50,000 life cycles
Can be mounted either in face frame style using rear bracket, or in frameless style to the side of the cabinet.
APPLICATIONS:
For Face Framed and Frameless Cabinets : Kitchen Cabinetry, Home Furniture and Box Drawers.
